Technical data

Technical data

A blend of trusted and well-performing technologies for optimal reliability

Features :

  • Brushless synchronous air-cooled motor with an average yield close to 90%
  • Performance equivalent to the historic 602 cm3 engine
  • Lithium LiFe PO4 batteries
  • TÜV-approved roll bars and 3-point safety belts
  • Electronic clocks and meters
  • Original 4 speed mechanical gearbox (Automatic Easy box optional)
  • Balanced mass distribution (50:50)
  • 4-seater vehicle
img-colonne-01

Motor

Motor

  • Type: brushless synchronous sine/cosine.
  • Motor controller: Sevcon Gen 4.
  • Position: Front
  • Power: 15 kW net
  • Cooling: by air
  • Yield: close to 90%
  • Type: front-wheel drive

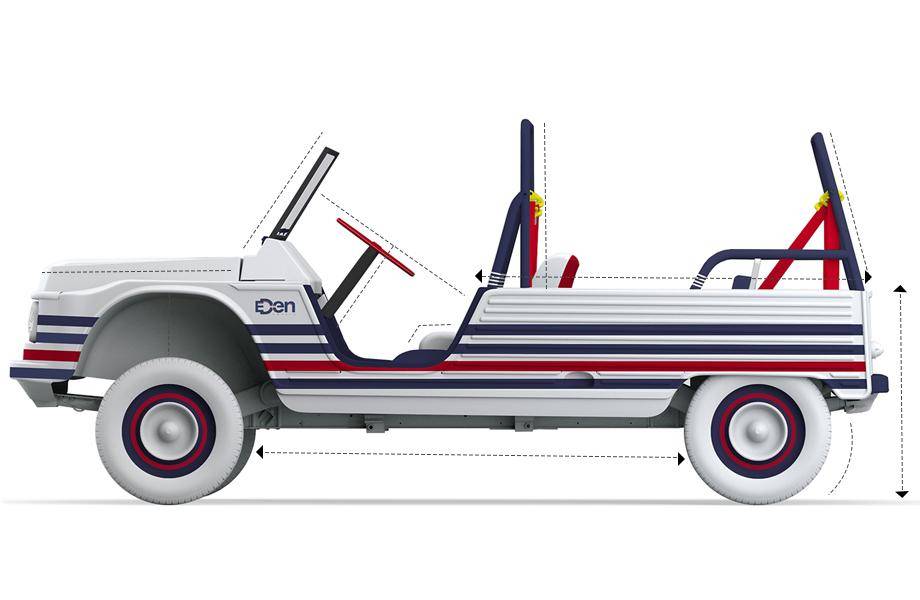

Dimensions

Dimensions

  • Total length: 3.57 m
  • Total width: 1.485 m
  • Total height: 1.490 m**
  • Total weight: 448 kg (excluding batteries)
  • Battery weight: 142 kg
  • Weight distribution: 50/50
  • Front tires: Michelin 135 / 515 ZX
  • Back tires: Michelin 135 / 515 ZX

Brakes, steering, suspension, transmission

Brakes, steering, suspension, transmission

  • Front brakes: disc; diameter 244 mm
  • Rear brake: drum
  • Front suspension: hydraulic shock absorber
  • Rear suspension: hydraulic shock absorber
  • Gearbox: original 4 speed mechanical gearbox (EASY Automatic box optional)

Chassis and bodywork

Chassis and bodywork

  • Platform: with electrophoretic deposition treatment, as per original model
  • Chassis: reinforced welded sheet metal with safety roll bars
  • Front seats: 2 (separate seats)
  • Rear seats: 2 (bench type)
  • Bodywork: ASA ABS with UV protection guarantee, as per original model

Performances

Performances

  • Actual autonomy: 90 km (approved for 131 km)
  • Maximum speed: 80kph
  • C02: 0 g per km

Top-of-the-line Finish

Top-of-the-line Finish

  • ABS/ASA bodywork with shape memory
  • Set of removable bars
  • Complete set of tarpaulins and doors
  • Car seat covers
  • Secure trunk lid
  • Double USB socket
  • Sea grass carpet
  • 2 chrome-plated premium finish outside mirrors…
    + Vehicle delivered with a customised protective cover.
